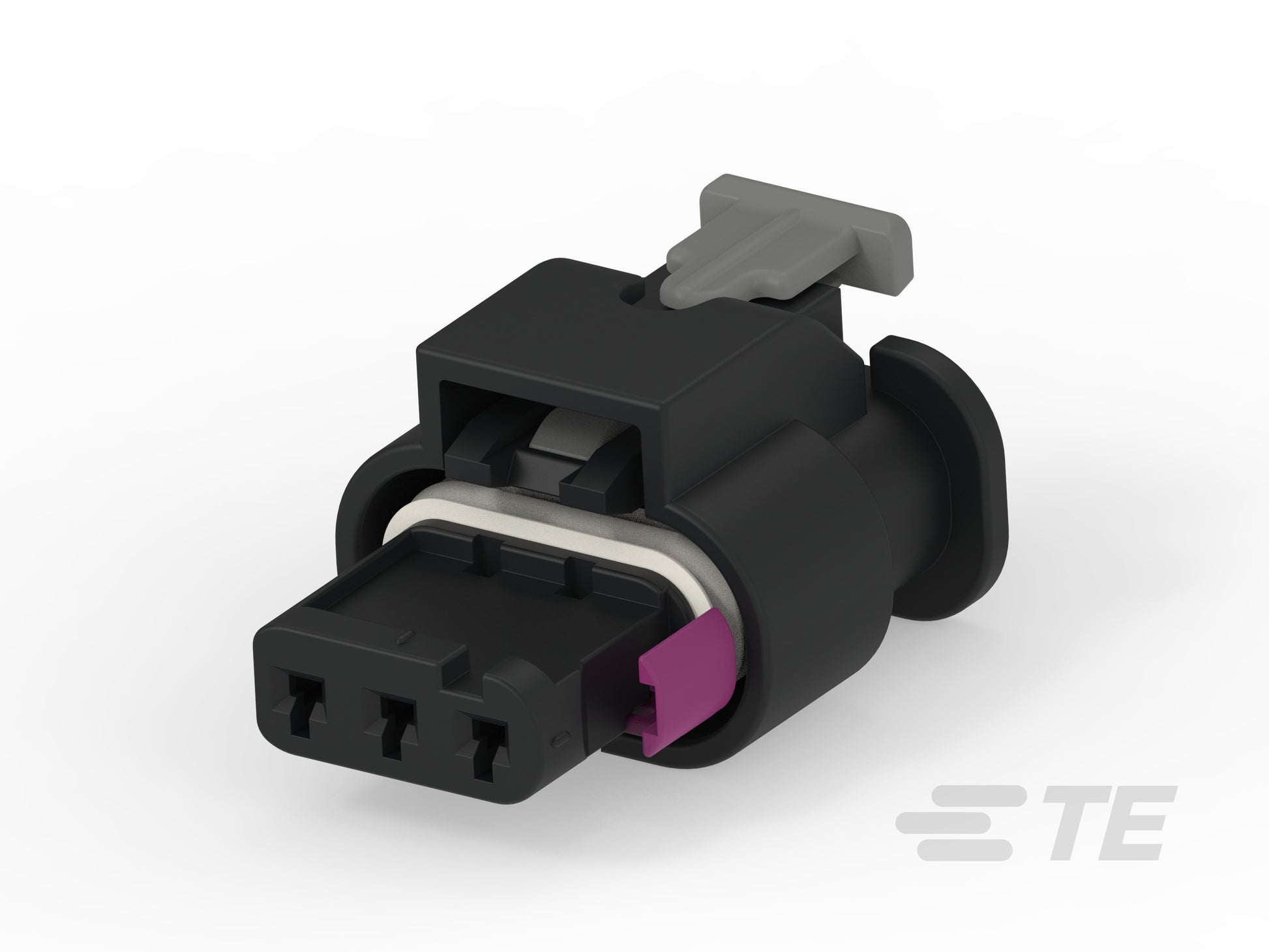

MCP 1.2 (MCON 1.2) 3-way receptacle housing — sealed (black)
MCP 1.2 (MCON 1.2) 3-way receptacle housing — sealed (black)
Regular price
€1,60 EUR
Regular price
Sale price
€1,60 EUR
Taxes included.
Shipping calculated at checkout.
Low stock: 10 left
Quantity
Couldn't load pickup availability
Good to know: this is the harness-side housing. The mating half is the male tab header moulded into (or supplied with) the sensor or device itself — there is no separate mating connector to order.
Specifications
| Series | AMP MCP 1.2 / MCON 1.2 |
| Manufacturer | TE Connectivity (AMP) |
| Pins | 3 |
| Gender | female |
| Sealing | Sealed |
| Wire size (conductor) | 0.5–1.5 mm² (20–16 AWG) |
| Termination | crimp |
| Colour | black |
| Temp range | -40 to +130 °C |
| Manufacturer no. | 1-1718644-1 |
| SKU | CON-MCP12-03 |
Terminals that fit
Complete this connector
